The valve that can be changed out in 10 seconds ... without tools!

The one valve
for all your uses

Excaliber's innovative modular design platform supports custom and specialized applications to give you maximum flexibility in any configuration.

• Single use
• Manual process control
• Remote actuated control
• Throttle flow control

Quick change
of valve element

Our innovative, diaphragm-free design makes batch change-outs quicker and easier ...

• 10-second change-out
• No tools required
• No gaskets needed

Plus many
other features

We've incorporated other various important specs and traits into the design of our Excaliber, enabling it to satisfy any and all operating requirements you may have ...

• Autoclavable
• Rugged design
• No drainability issues
• Available in metric sizes
• Cv equal to process tubing
• Extremely high flex-cycle life
• 150°C operating temperature (Stapure®)
• Cost-effective, single-use option
• 360° functional orientation
• Available in right- or left-hand configuration
• Available with either manual or actuated topworks in any combination
• Tubing bushing inserts removable

Validation Protocols:

• USP Class VI, USP 87, USP 88, USP 661, USP 381
• European Pharmacopoeia Section 3.1.9
• ISO 10993
• ADI-free materials
• GRAS materials

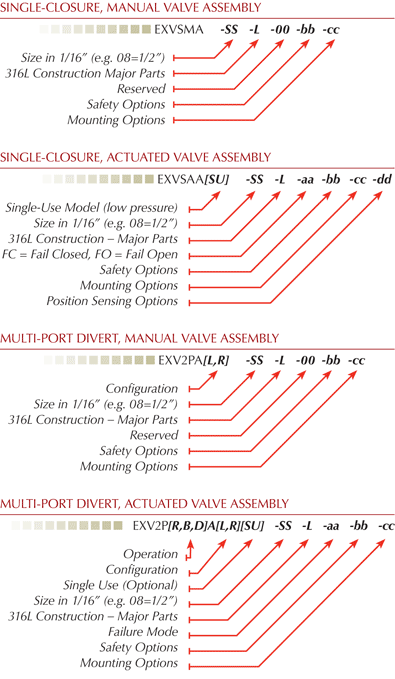

Part Numbering Key:

Configuration
left-hand orientation (viewed from opening side, branch on left)	L
right-hand orientation (viewed from opening side, branch on right)	R
Operation
manual operation on the run	R
manual operation on the branch	B
pneumatic operation on both	D
Single-Use
optional, low pressure pneumatic operator	SU

Option Key:

Safety Option
Body Lock	BX
Mounting Hole Options
Top Only	TX
Bottom Only	XB
Top & Bottom	TB
Position Sensing Options
Passive Indicator	PI
On/Off Sensor	DS
Variable Position Sensor	VP
